Overview

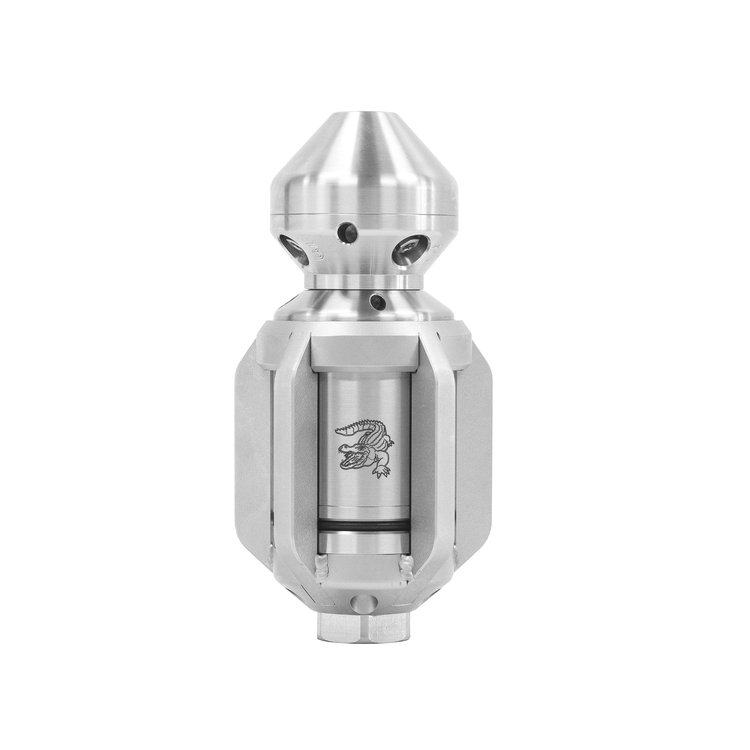

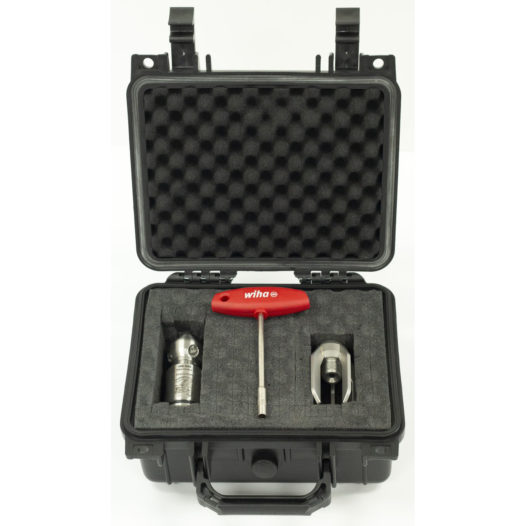

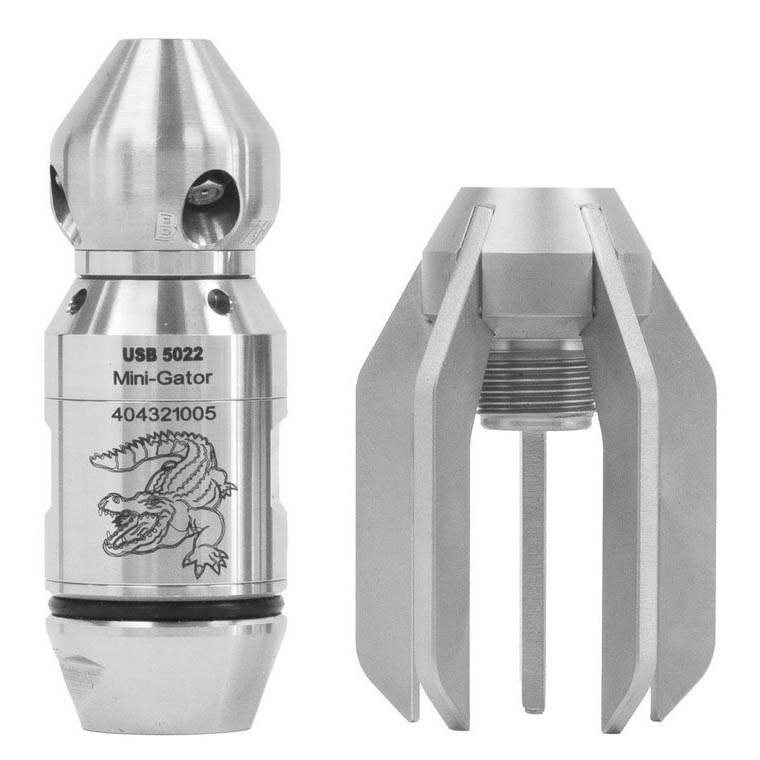

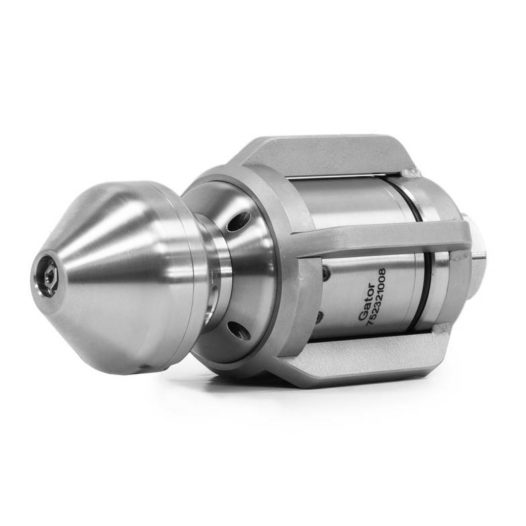

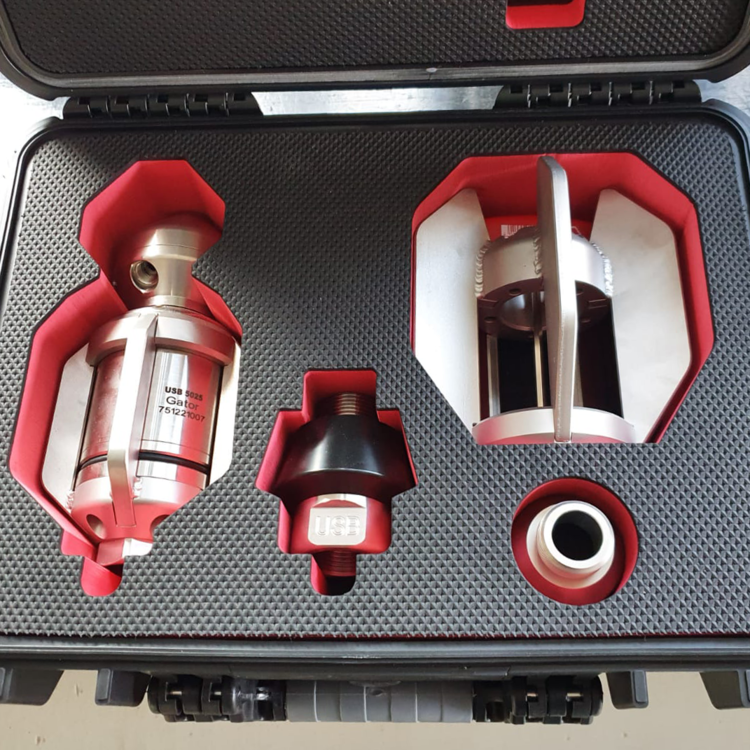

The Gator and Mini Gator nozzles cut and remove roots, grease, blockages, and scale in various pipes ranging from 2″ – 20″. Encased in a compact stainless-steel body the strong reinforced internal design rotates the head. 3D fluid mechanics in the head smoothly direct all the incoming high-pressure water to the four rotating jets in the rear of the head and one in front. These rotating jets create an extremely powerful 360 degree all around complete cleaning of the pipe, flushing, and removing debris in less passes. The offset front jet eliminates blockages easily and effectively. A case kit is available which includes an additional skid. It makes for an excellent alternative to the popular Warthog nozzle.
- Round Pipes, Oval Shaped Pipes
- 3D Fluid Mechanics
- Recycled Water Approved
- Tier 3
Specifications
| Part Number |
Hose Con. (NPT) |
GPM/ Minimum |
Pipe Diameter (in) |
Dimensions (L x W) |
Weight (lbs) |
Rear Jets |
Front Jets |
Head Jets |
Product Tier |
|---|---|---|---|---|---|---|---|---|---|
| 5022 | 3/8″ – 1/2″ | 9 | 3″ – 8″ | 4.33″ x 1.57″ | 1.32 | — | 1 | 4 | |
| 5025 | Case Kit | ||||||||
| 5030 | 3/4″ – 1″ | 50 | 6″ – 24″ | 8.66″ x 4.52″ | 14.33 | — | 1 | 4 | |
| 5035 | Case Kit |
