The Spin-Jet is a self-centering, controlled rotating nozzle that is used for cleaning lift stations, barrels and manholes prior to rehabilitation. Available in two different versions, the Spin-Jet has driving nozzles that make the nozzle rotate in a 360° horizontal plane only. This action eliminates the need to cover the manhole during operation which allows for constant viewing of the cleaning process. Front jets thoroughly clean any grease, sludge or mud at the bottom.
Overview
- Round Pipes, Oval Shaped Pipes
- 3D Fluid Mechanics
- Recycle Water Approved
- Tier 2
Product Specs
| Part Number |
Hose Con. (NPT) |
GPM/ Minimum |
Pipe Diameter (in) |
Dimensions (L x W) |
Weight (lbs) |
Rear Jets |
Front Jets |
Radial Jets |
Product Tier |
|---|---|---|---|---|---|---|---|---|---|

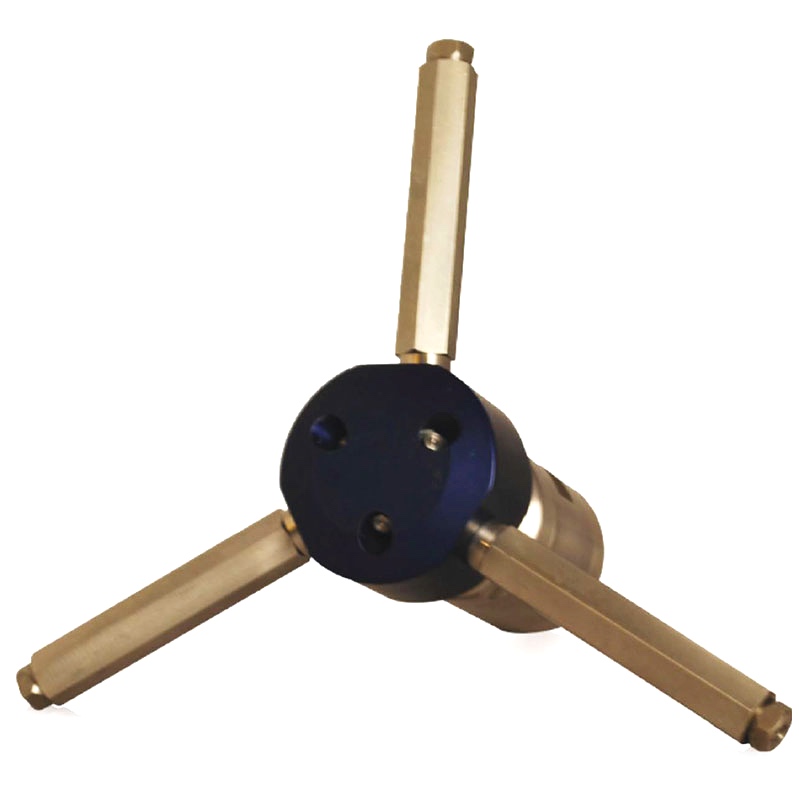

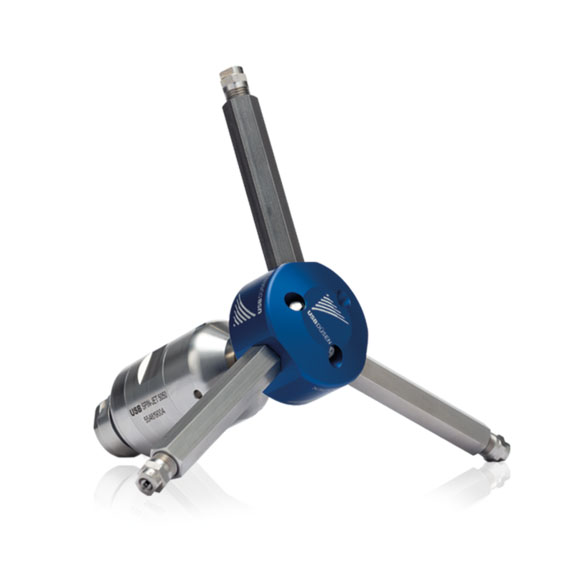

| 5050 | 1/2″ | 12 | Man Hole or Lift Station 4′ – 15′ | 6.29″ x 9.84″ | 4.85 | – | 3 | 3 | Tier 2 |

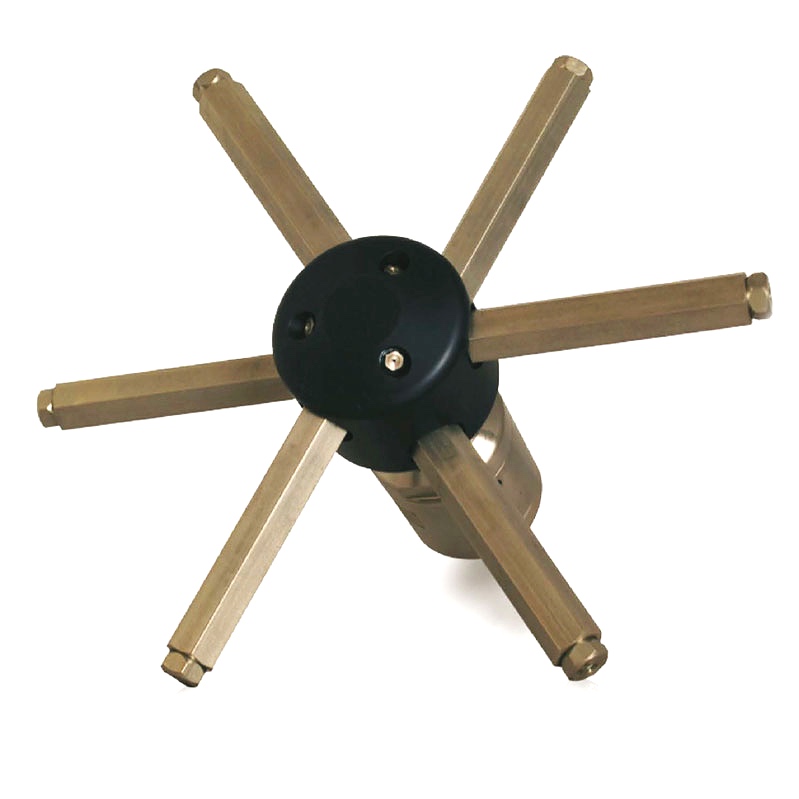

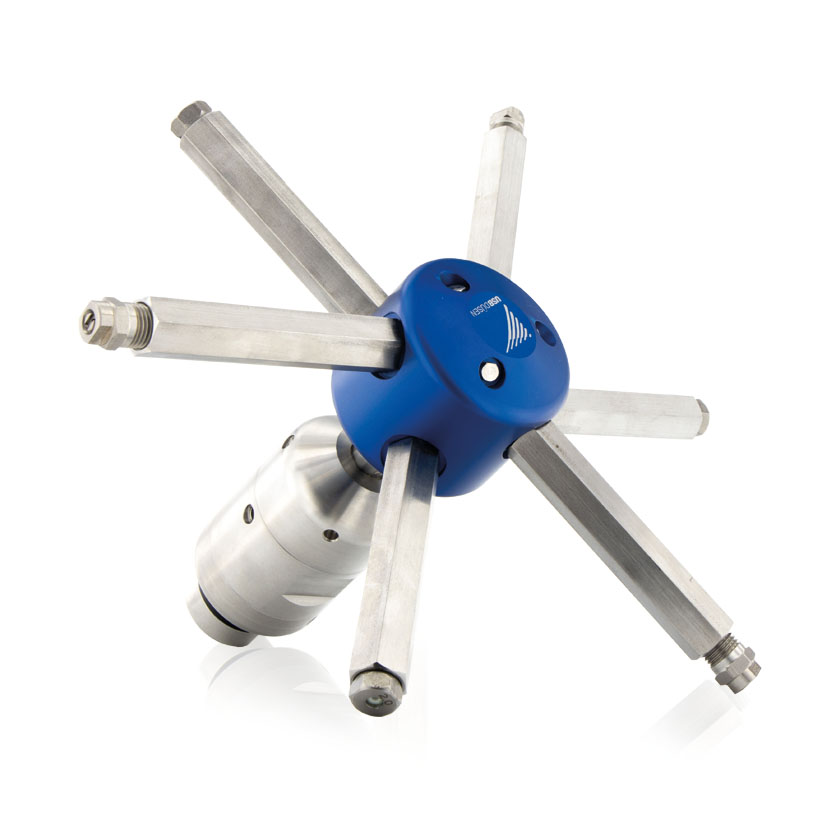

| 5052 | 3/4″ | 30 | Man Hole or Lift Station 4′ – 15′ | 6.29″ x 11.02″ | 7.05 | – | 3 | 6 | Tier 2 |
SOURCE: USB-USA, LLC.
